Challenge
Long-term client commissioned premium karaoke club and multi-format space capable of hosting live bands. Project required complete technical concept development including stage positioning, FOH location, full building soundproofing design, and interior finish material consultation with construction contractor to achieve optimal room acoustics. Scope encompassed complete technical equipment including audio, visual design and video systems – client provided full trust in our recommendations.
Solution

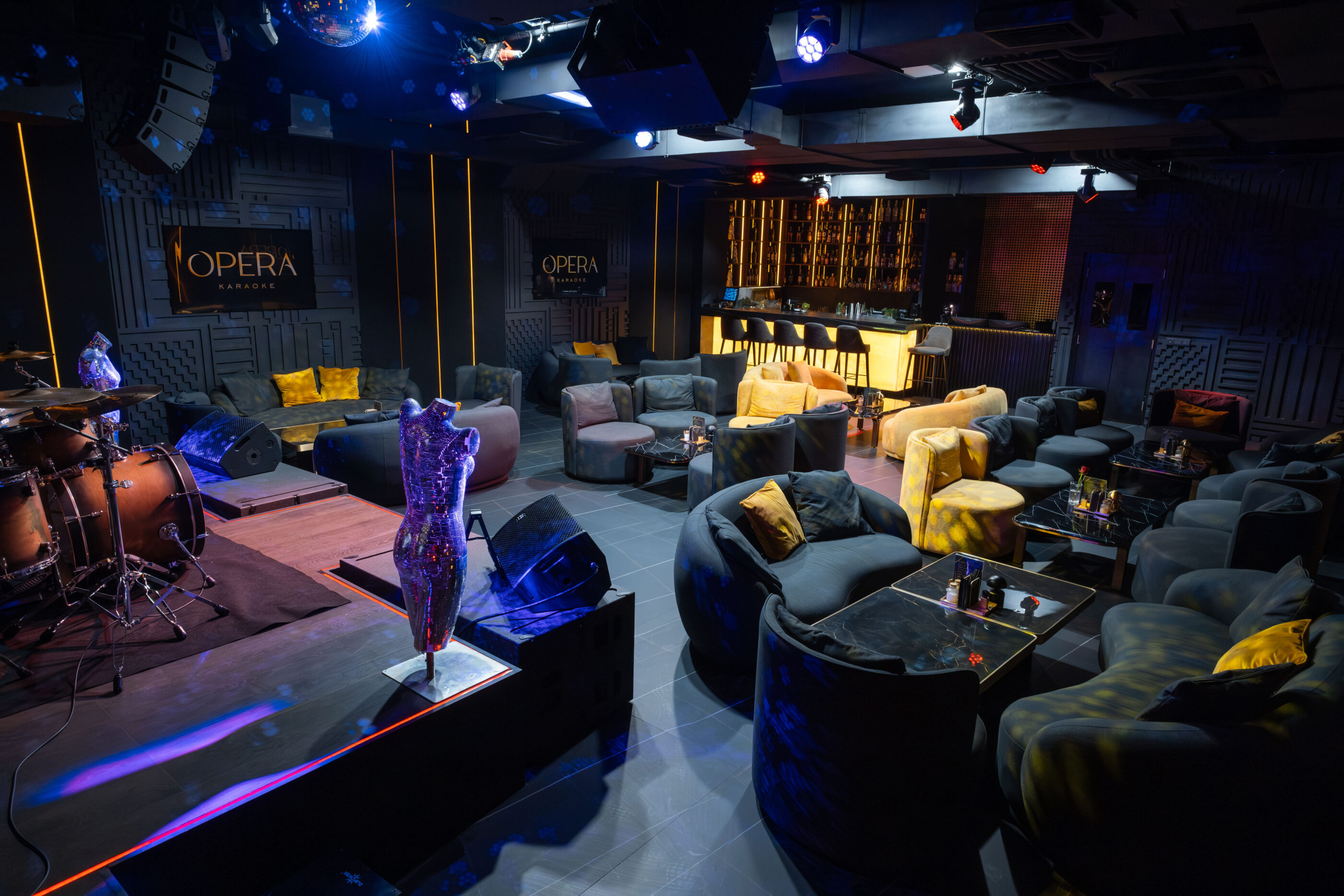

Audio System: Selected MXlab Violina compact line arrays – optimal karaoke choice as multiple small drivers outperform single large driver due to significantly lower mass and superior impulse response. Two powerful MXlab Blast 218 subwoofers provide low-frequency support from 35Hz, plus four mid-bass subwoofers fill critical lower-midrange essential for realistic instrument reproduction. System designed with critical headroom principle – sufficient volume at 70% power capacity prevents distortion and maintains excellent sound quality. Professional FOH position designed following concert venue principles, enabling proper engineering work from acoustically correct location.
Video Systems: Installed BOE TV wall (16 panels) plus additional wall-mounted TV panels (4 units) ensuring video content visibility for every guest. Resolume Arena control integration.

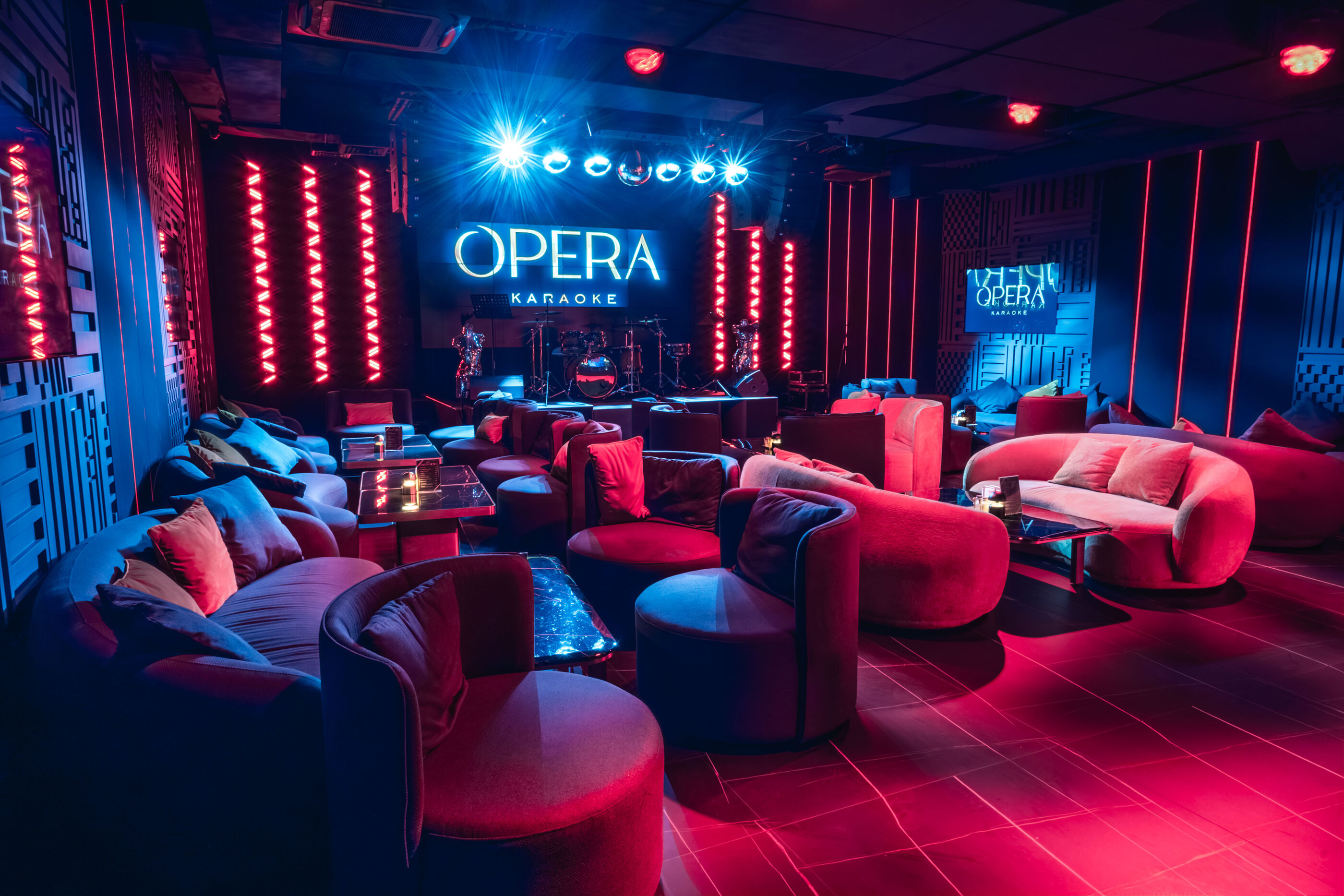

Lighting Design: Developed comprehensive system integrating architectural RGB LED lighting with performance lighting, enabling complete space color scheme transformation through unified control. Maximally ergonomic and automated video/lighting operation allowing single operator to manage complete club technical systems.
Acoustic Engineering: Developed complete soundproofing project with vibration isolation for entire internal space. Provided construction technology consultation in collaboration with Phuket’s leading construction company. Designed acoustic treatment including diffusion and absorption panels integrated as interior design elements. Achieved excellent acoustic parameters and incredible guest comfort comparable to recording studio or commercial cinema environment.
3D Mapping: Partnered with visualization projection specialists for installation becoming venue signature feature. Custom outdoor projector enclosure with AC cooling, Vivetek DU7299Z+ projector, Resolume Arena server.
Results

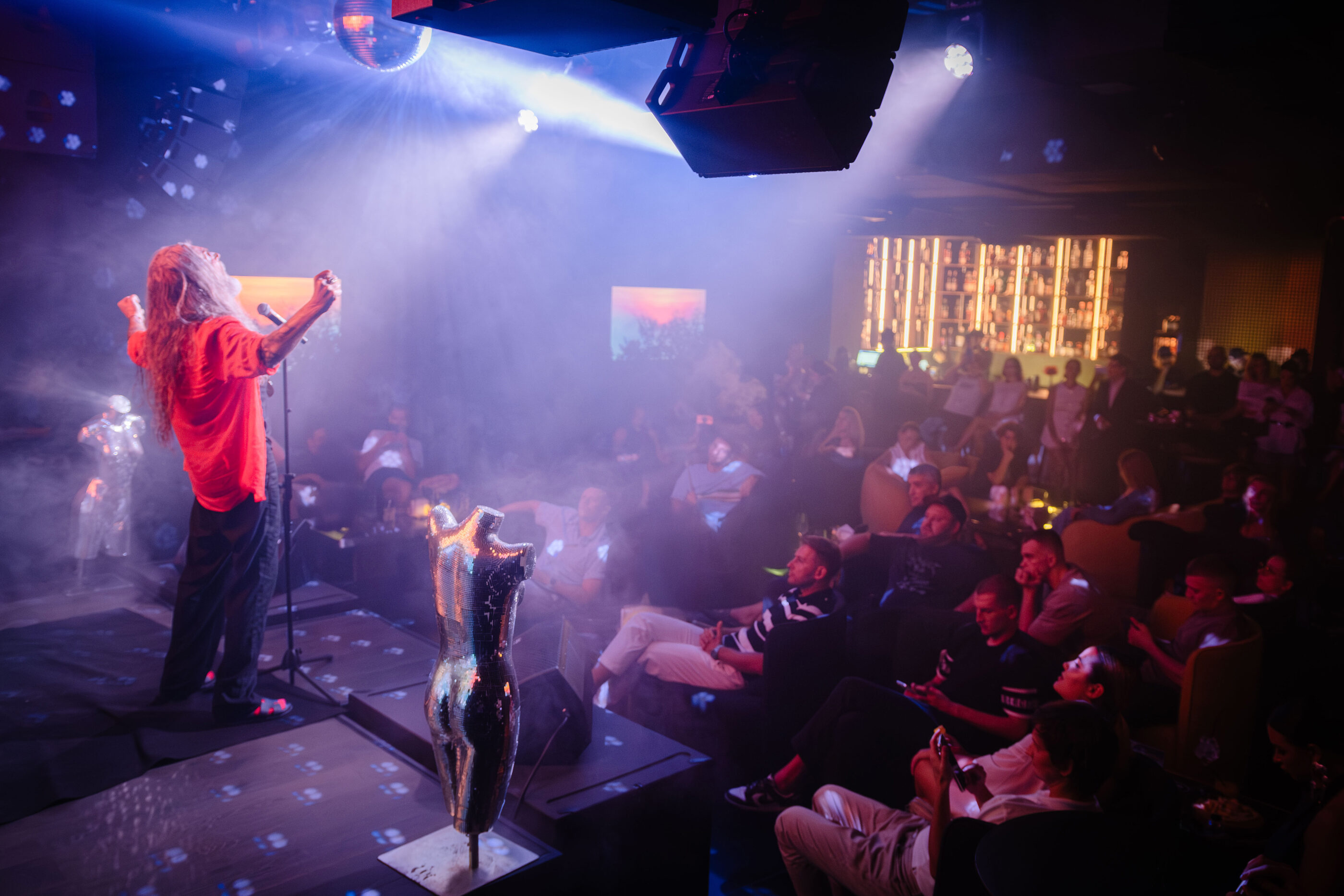

Currently island’s best karaoke club with excellent guest reviews and high marks from artists and professionals. Venue achieved significant popularity and set industry trend on island with multiple unsuccessful attempts by competitors to approach quality level. Guests experience highest acoustic comfort level and large concert venue feeling in compact space. Carefully engineered lighting system transforms spatial visual design, while massive screen plus additional TV panels ensure video content reaches every guest.
Technical Specifications
Audio System:
- MXlab Violina line array elements (12 units)
- MXlab Blast 115 mid-bass subwoofers (4 units)
- MXlab Blast 218 subwoofers (2 units)
- MXlab & Labgruppen amplifiers
- Marani MIR880F speaker management
- Yamaha DM3D digital console with TIO1608D2 stage box
Video System:
- BOE TV wall panels (16 panels)
- BOE TV panels (4 units)
- Resolume Arena control
Lighting System:
- BSW 200 moving heads (6 units)
- Bee Eye Mini moving heads (4 units)
- TV PAR (4 units)
- Zoom Wash moving heads (9 units)
- S-Tribe LED bars (18 units)
- LED neon in-wall strip (100 meters)
- Sunlite Suite 2 & AKAI APC40 control
Karaoke Equipment:
- AST-250 karaoke machine
- Shure SLXD24/B58A wireless microphones (4 units)
- Shure SH55S signature microphone (1 unit)
3D Mapping Installation:
- Vivetek DU7299Z+ projector
- Custom outdoor projector enclosure with AC
- Resolume Arena video server
Acoustic Treatment:
- Complete soundproofing with vibration isolation
- Custom diffusion and absorption panels
- Interior-integrated acoustic design
This project is a working example of the principles described in our karaoke sound system Thailand design guide and professional lighting installation guide.
