Challenge
Create multi-functional premium quality zonal audio system and install professional LED screen for open-space restaurant. After market analysis, identified significant demand for beautiful open event space for daytime presentations, trainings and corporate events – filling traditional restaurant dead hours. Client approved expanded concept requiring venue capable of hosting events while maintaining restaurant operations.
Solution

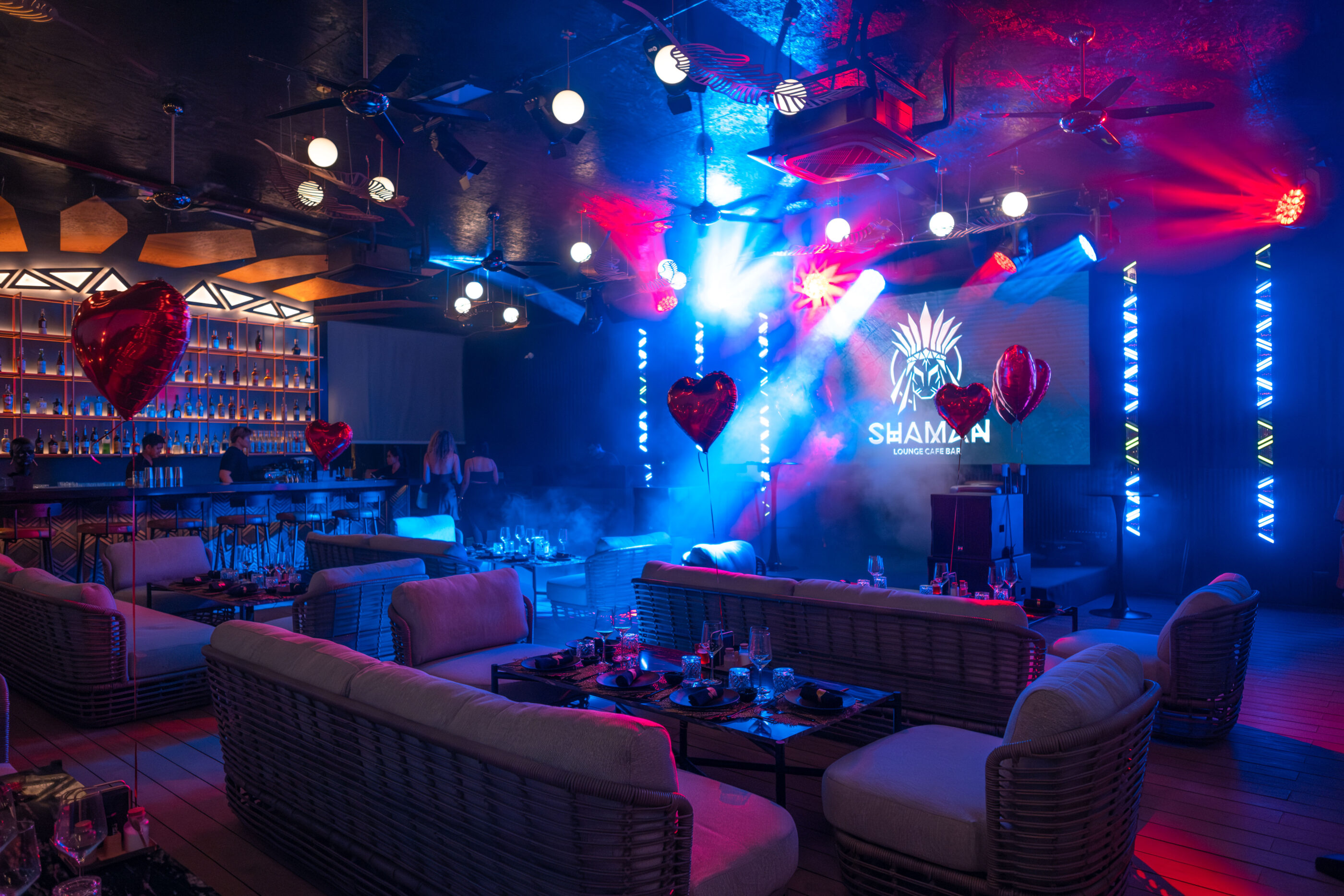

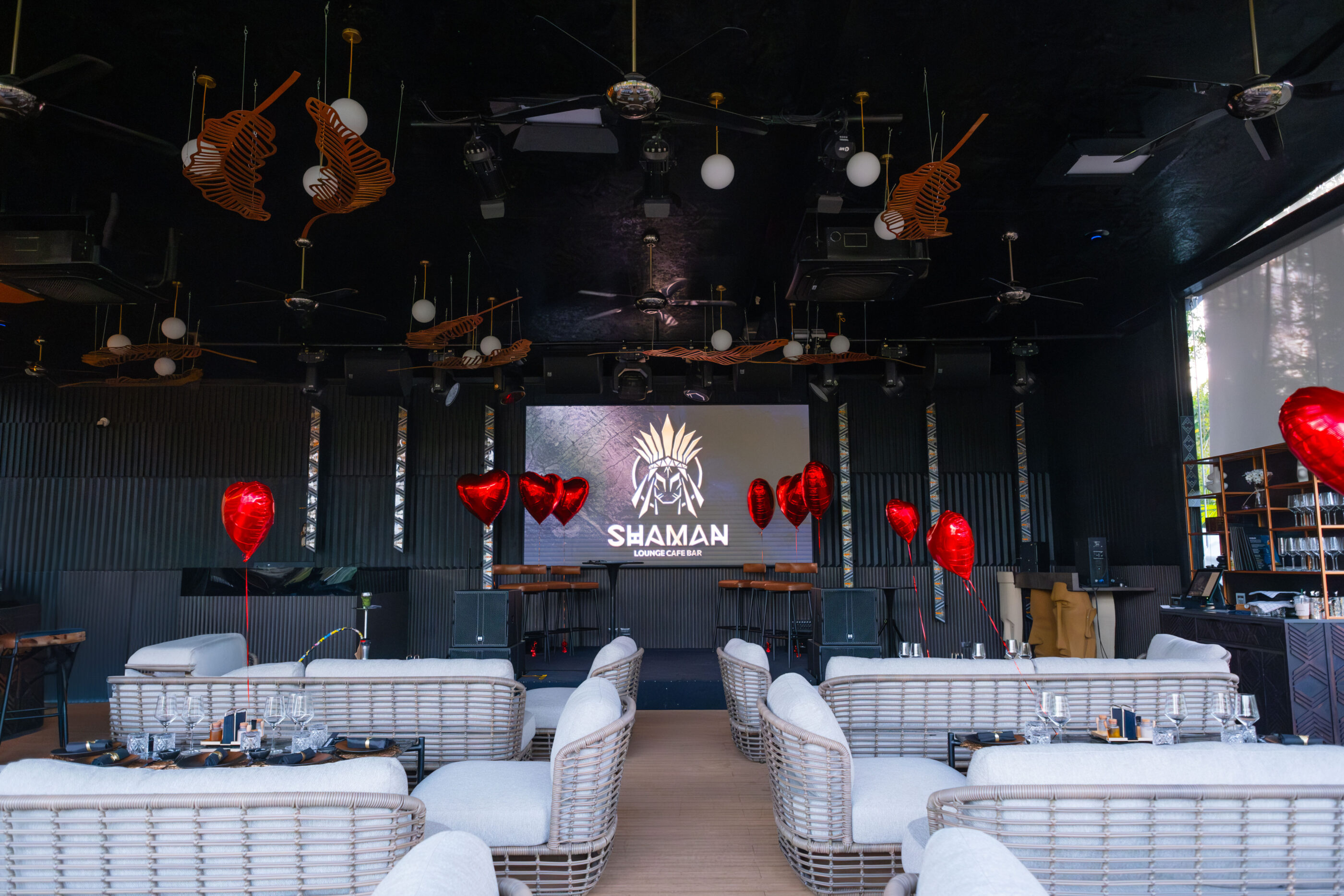

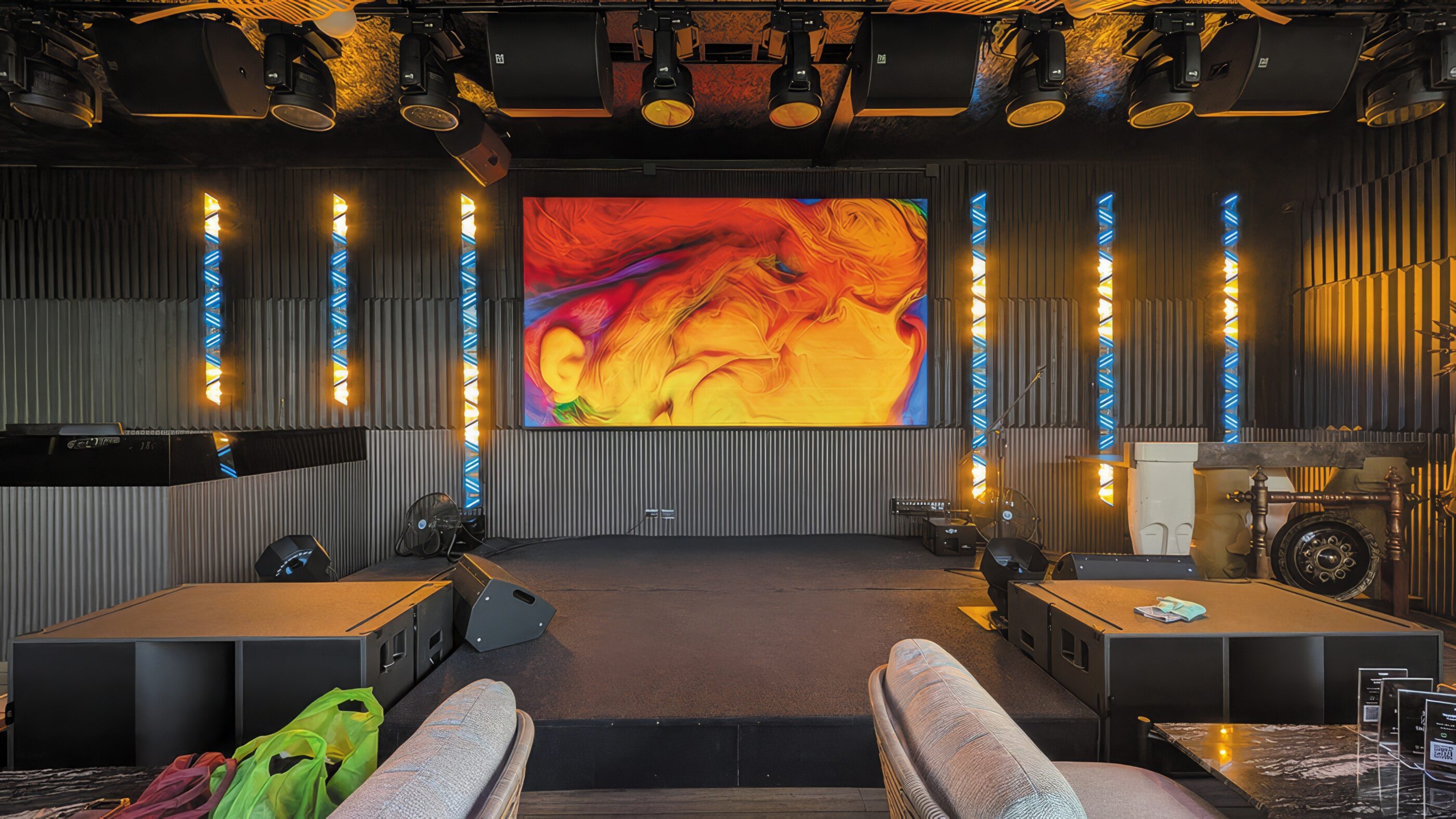

Lounge/Stage Area: Installed Martin Audio FP15 series with SXC118 cardioid subwoofers for artist performances. Added professional DMX-controlled lighting and Gloshine P1.87 HDR10 LED screen for video broadcasting.

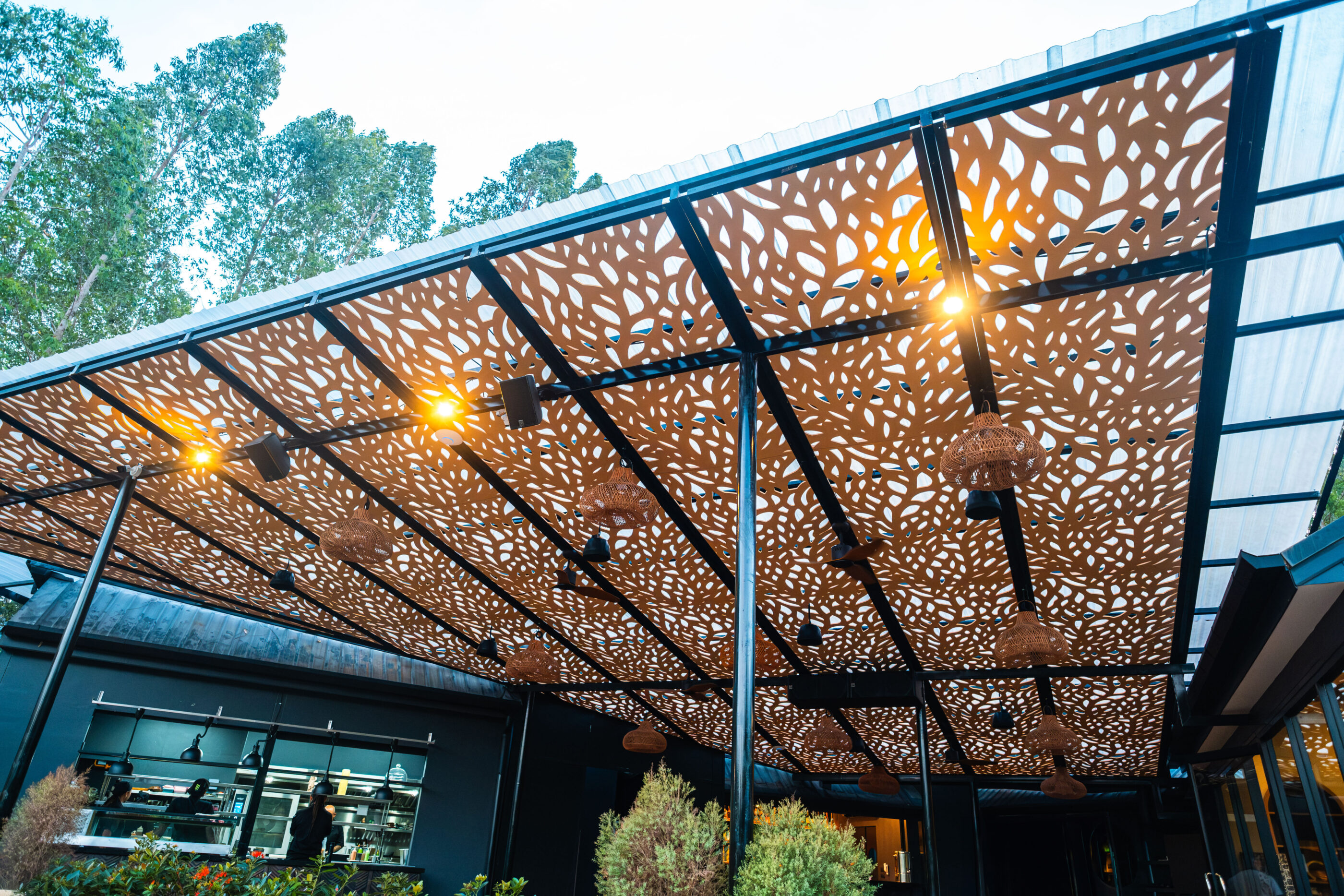

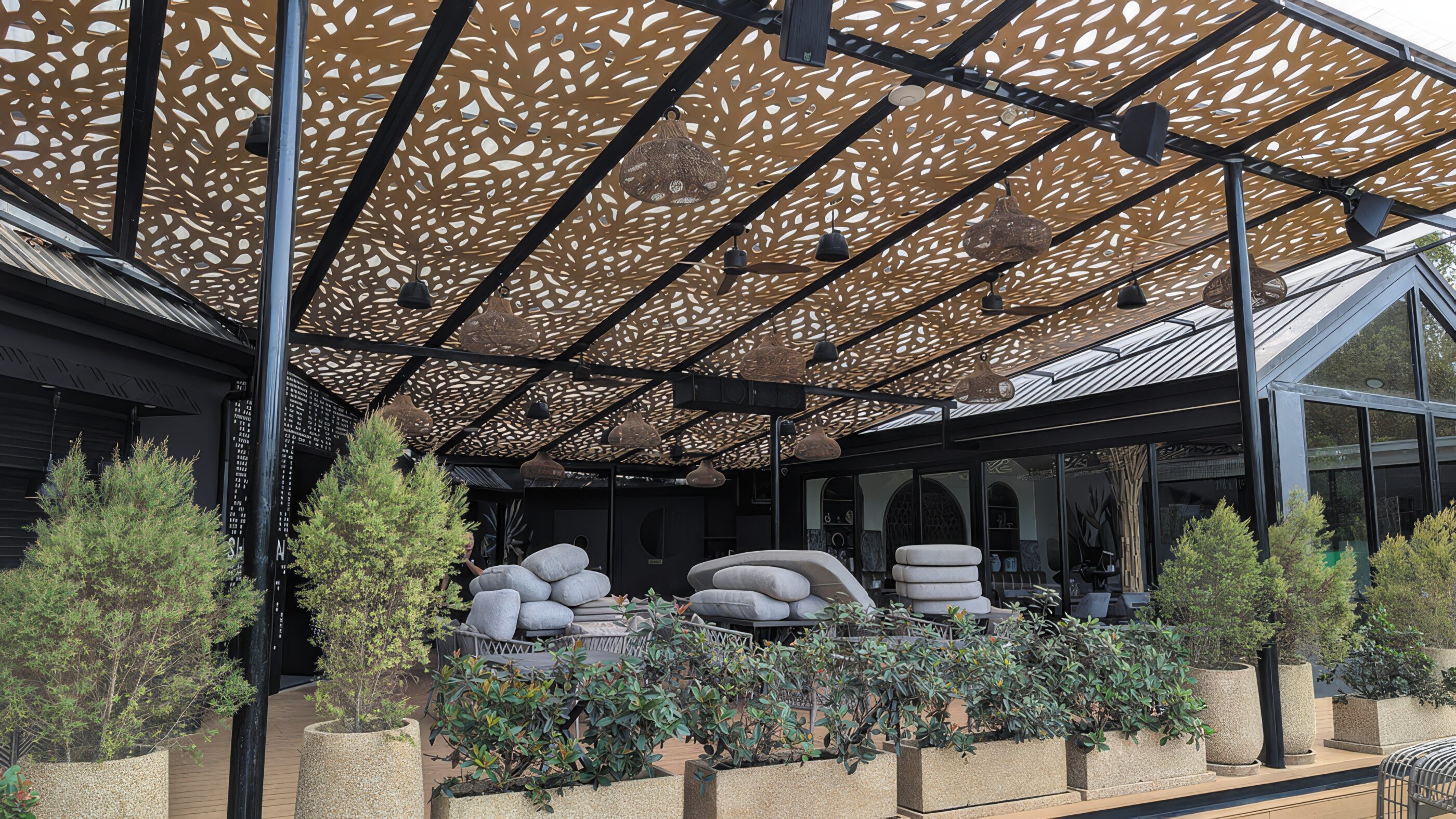

Restaurant Zones: Equipped with Martin Audio commercial series – Adorn and CDD systems, considered best-in-class for commercial spaces. Multiple zones (terrace, glass room, smoke room, entrance, restrooms) tailored to specific acoustic requirements.
Karaoke VIP Room: Created complete soundproofing preventing loud music from reaching dining area meters away. Installed overload-capable MXlab Stella column systems with LD Systems Curve 500 installation subwoofers. Applied special “double bass array” mounting technique eliminating low-frequency mutual cancellation in small rooms – solving notoriously difficult acoustic problem.

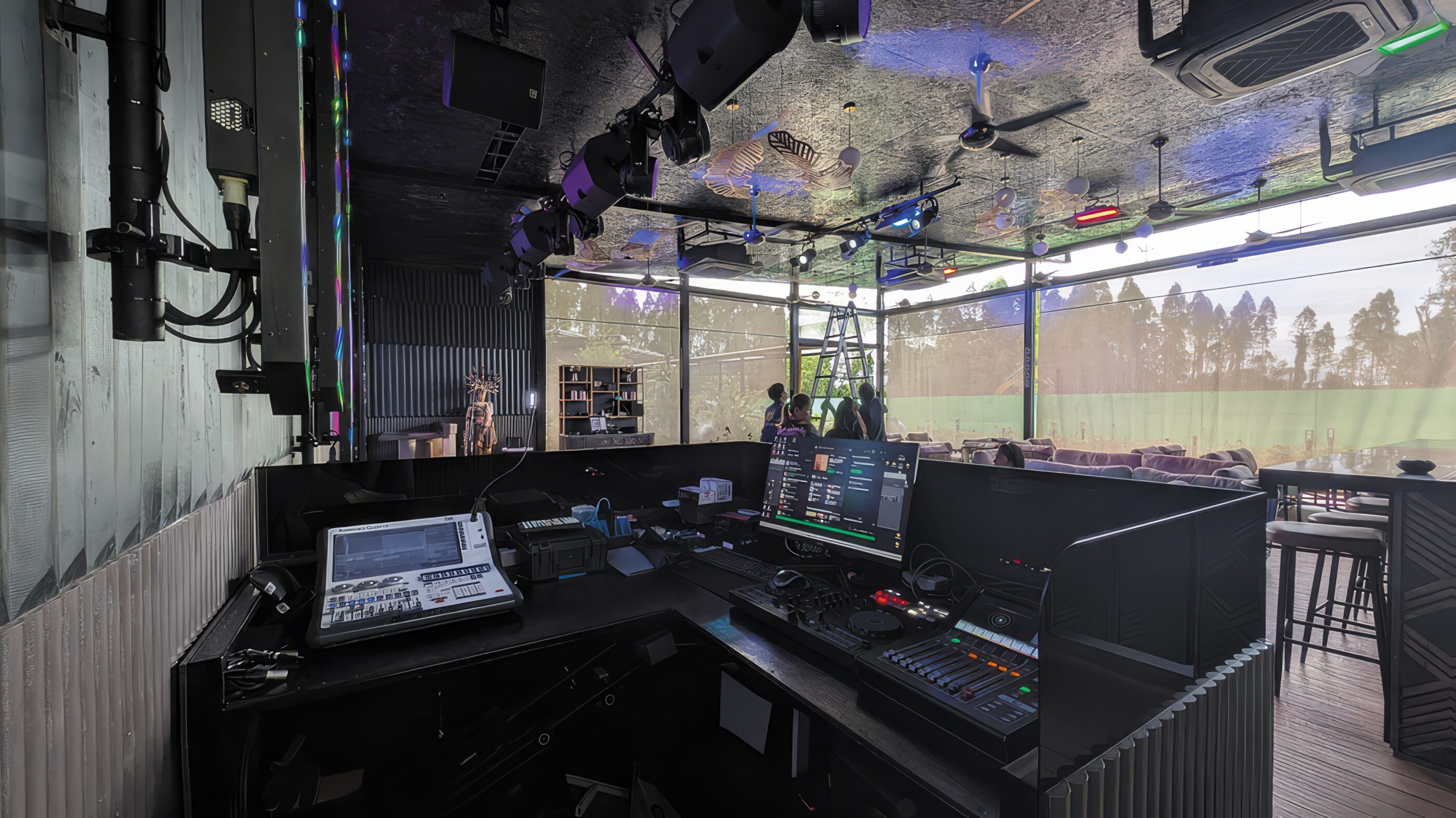

Integration: QSC MPM80 control system with wall panels provides intuitive smartphone management. Complete professional equipment suite for sound engineers, lighting operators and video operators. Ergonomic equipment placement simplifies venue operation.
Results
Venue became favorite location for corporate events, weddings and banquets among island organizers. Space ready for any task format requirements. Simple intuitive system control enables staff operation while full professional equipment suite supports complex productions. Strategic concept participation and independent task definition delivered impressive results – venue now successfully operates dual-purpose restaurant and premier event space.
Technical Specifications
Lounge Audio:
- Martin Audio FP15 (4 units)
- Martin Audio FP12 (2 units)
- Martin Audio SXC18 cardioid subwoofers (4 units)
- Martin Audio VIA series amplifiers
- Marani MIR880F speaker management
Terrace Audio:
- Martin Audio ACP-55T (8 units)
- Martin Audio SX210 (2 units)
- Martin Audio CDD6 (6 units)
- Martin Audio VIA amplifiers
- Marani MIR480 processing
Glass Room Audio:
- Martin Audio ACP-55T (2 units)
- Martin Audio SX210 (1 unit)
- Martin Audio VIA amplifiers
- Marani MIR480 processing
Smoke Room Audio:
- Martin Audio ACP-55T (2 units)
- Martin Audio SX110 (1 unit)
- Martin Audio VIA amplifiers
- Marani MIR480 processing
Entrance Audio:
- Martin Audio CDD10 (2 units)
- Martin Audio VIA amplifiers
- Marani MIR480 processing
Karaoke VIP Room:
- MXlab Stella Mini column systems (2 units)
- LD Systems Curve 500 subwoofers (4 units) – double bass array configuration
- Cambridge Audio DAC Magic 200M SPDIF converter/switcher
Restrooms:
- Martin Audio ACS-55TS (4 units)
- Martin Audio VIA amplifiers
- Marani MIR480 processing
Video System:

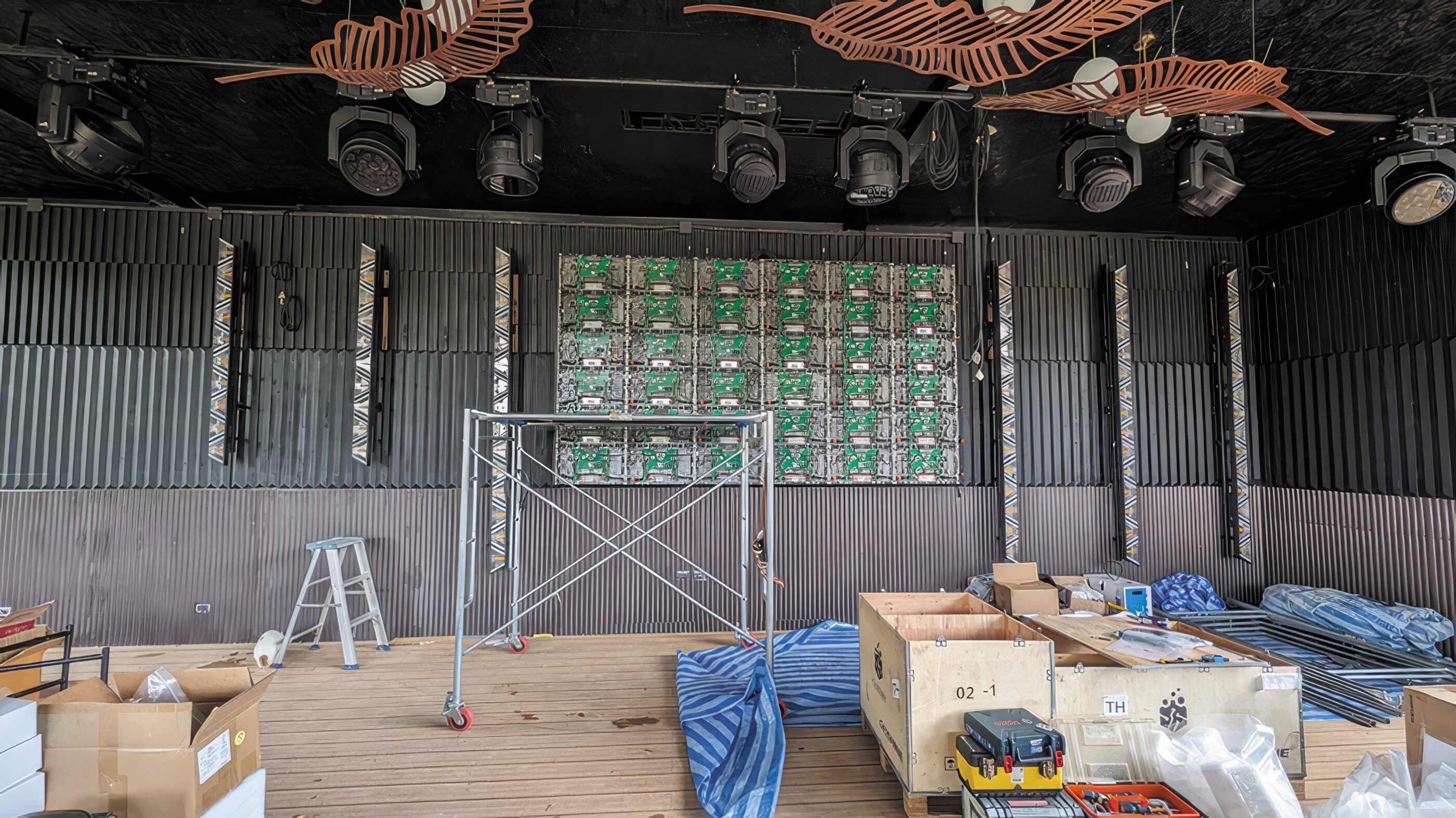

- Gloshine P1.87 HDR10 LED screen (16:9 format)
- Blackmagic ATEM Mini Pro video mixer
- Resolume Arena control
Lighting System:
- Bee Eye 1940 moving heads (8 units)
- TV LED PAR (6 units)
- Zoom PAR stage lights (3 units)
- S-Tribe LED bars (16 units)
- Sunlite Suite 2 control
Control System:
- QSC MPM80 processor
- QSC wall control panels
